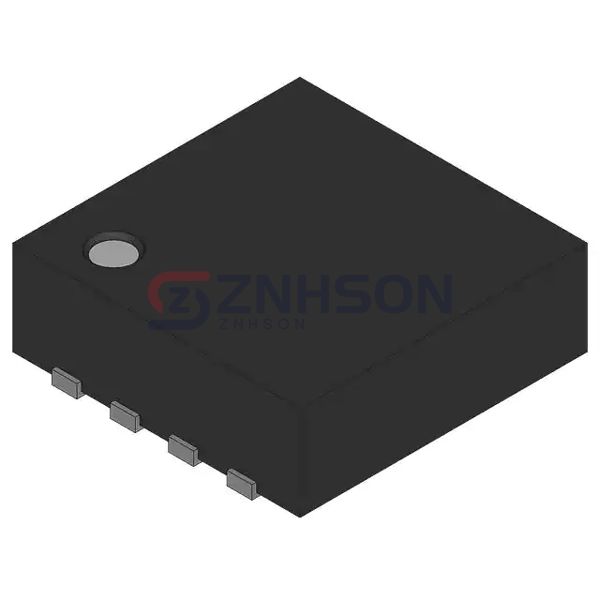

NC7WZ32L8X
Fairchild Semiconductor
Fairchild Semiconductor
IC GATE OR 2CH 2-INP 8MICROPAK
$0.18
Available to order
Reference Price (USD)
5,000+
$0.17574
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NC7WZ32L8X from Fairchild Semiconductor delivers exceptional value in the Logic - Gates and Inverters market segment. This surface-mount IC combines multiple universal logic gates with optimized power-speed performance ratios. Key benefits include latch-up immunity exceeding 500mA and input leakage current below 1 A. Design engineers implement this component in power management systems, digital control circuits, and signal processing applications. Specific use cases include solar inverter controls, elevator logic boards, and industrial sensor networks. The NC7WZ32L8X's compatibility with automated pick-and-place manufacturing processes makes it an economical choice for high-volume production runs across consumer and industrial sectors.
Specifications
- Product Status: Active
- Logic Type: OR Gate
- Number of Circuits: 2
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: -
- Logic Level - High: -
- Max Propagation Delay @ V, Max CL: 3.7ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-MicroPak™
- Package / Case: 8-UFQFN
