NCD5702DR2G
onsemi
onsemi

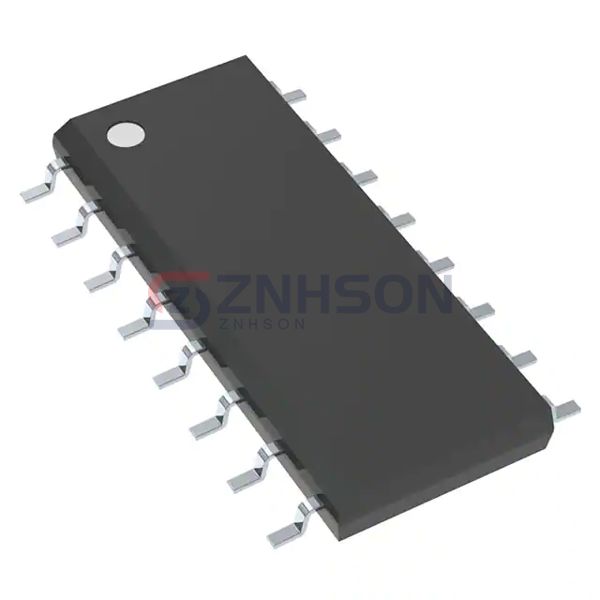

IC GATE DRVR HALF-BRIDGE 16SOIC
$1.29
Available to order
Reference Price (USD)
2,500+
$1.20150
5,000+
$1.15700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's NCD5702DR2G establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the NCD5702DR2G reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT
- Voltage - Supply: 5.5V
- Logic Voltage - VIL, VIH: 0.75V, 4.3V
- Current - Peak Output (Source, Sink): 7.8A, 6.8A
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 9.2ns, 7.9ns
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 16-SOIC
