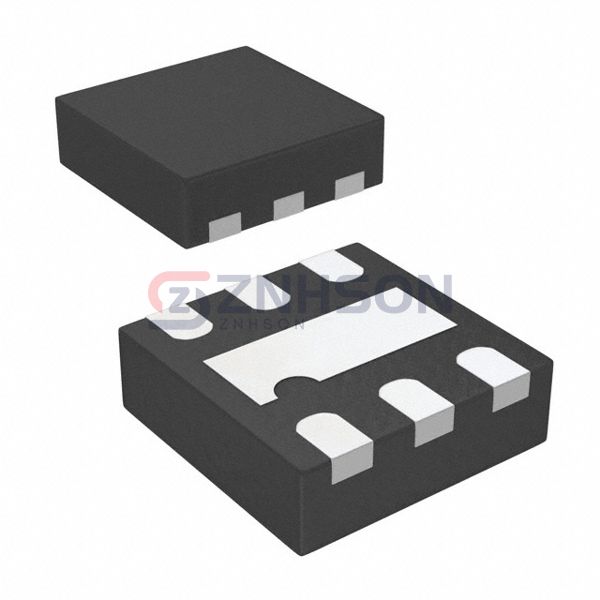

NCP120AMX105TCG

onsemi

Manufacturer

onsemi

Description:

IC REG LINEAR 1.05V 150MA 6XDFN

Datasheet:

NCP120AMX105TCG Datasheet

$0.11

Available to order

Reference Price (USD)

3,000+

$0.17825

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The NCP120AMX105TCG from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.05V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.075V @ 150mA
Current - Output: 150mA
Current - Quiescent (Iq): -
Current - Supply (Max): -
PSRR: 80dB ~ 70dB (1kHz)
Control Features: Enable
Protection Features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Package / Case: 6-XFDFN Exposed Pad
Supplier Device Package: 6-XDFN (1.2x1.2)
