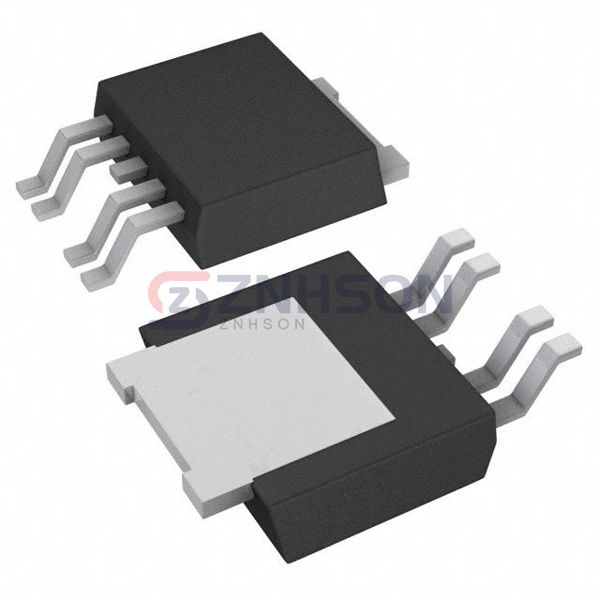

NCV5504DTRKG
onsemi
onsemi
IC REG LINEAR POS ADJ DPAK-5
$0.77
Available to order
Reference Price (USD)
2,500+
$0.82282
5,000+
$0.79235
12,500+
$0.76188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NCV5504DTRKG from onsemi is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the NCV5504DTRKG provides the reliability you need.
As a member of the PMIC - Voltage Regulators - Linear family, the NCV5504DTRKG excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications.
The NCV5504DTRKG is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable (Fixed)
- Number of Regulators: 2
- Voltage - Input (Max): 18V
- Voltage - Output (Min/Fixed): 1.25V (3.3V)
- Voltage - Output (Max): 5V
- Voltage Dropout (Max): 0.4V @ 250mA, 0.4V @ 250mA
- Current - Output: 250mA, 250mA
- Current - Quiescent (Iq): 450 µA
- Current - Supply (Max): 20 mA
- PSRR: 75dB ~ 60dB (120Hz ~ 1kHz)
- Control Features: -
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Supplier Device Package: DPAK-5
