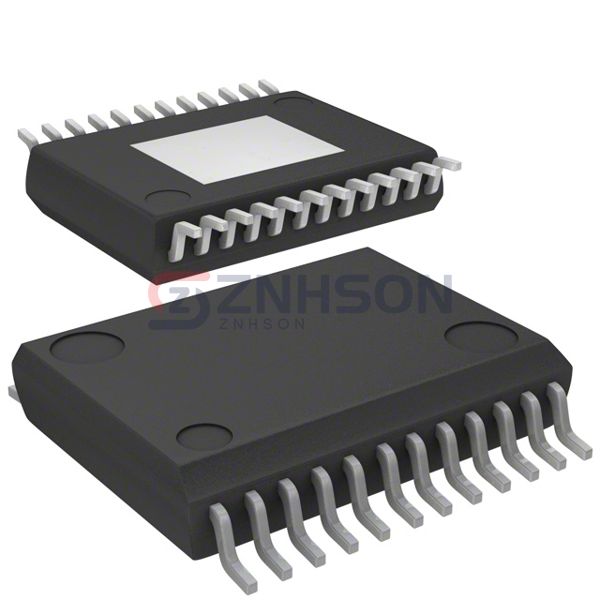

NCV7725DQBR2G
onsemi
onsemi
10 CHANNEL HALF-BRIDGE DRIVER
$5.34
Available to order
Reference Price (USD)
1+
$5.34000
500+
$5.2866
1000+
$5.2332
1500+
$5.1798
2000+
$5.1264
2500+
$5.073
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NCV7725DQBR2G by onsemi is a top-tier PMIC - Full, Half-Bridge Driver IC, perfect for enhancing power efficiency in various applications. From home appliances to automotive systems, this IC provides smooth and controlled power delivery with minimal losses. The NCV7725DQBR2G boasts high noise immunity and low quiescent current, making it suitable for battery-operated devices. Choose onsemi for a driver IC that combines performance, efficiency, and durability in one compact package.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (3)
- Applications: DC Motors, General Purpose
- Interface: Logic, PWM, SPI
- Load Type: Capacitive and Resistive
- Technology: NMOS
- Rds On (Typ): 800mOhm LS, 800mOhm HS
- Current - Output / Channel: 500mA
- Current - Peak Output: 1.1A
- Voltage - Supply: 3.15V ~ 5.25V
- Voltage - Load: 3.15V ~ 5.25V
- Operating Temperature: -40°C ~ 125°C (TJ)
- Features: Charge Pump
- Fault Protection: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 24-LSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 24-SSOP-EP
