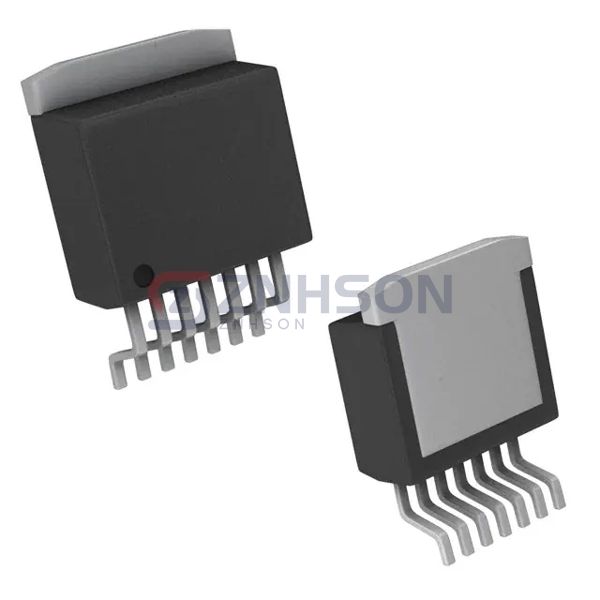

NCV8505D2T50R4
onsemi
onsemi
IC REG LINEAR 5V 400MA D2PAK-7
$0.75
Available to order
Reference Price (USD)
1+
$0.75000
500+
$0.7425
1000+
$0.735
1500+
$0.7275
2000+
$0.72
2500+
$0.7125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NCV8505D2T50R4 from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 45V
- Voltage - Output (Min/Fixed): 5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 400mA
- Current - Output: 400mA
- Current - Quiescent (Iq): 350 µA
- Current - Supply (Max): 45 mA
- PSRR: -
- Control Features: Enable, Reset
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package: D2PAK-7
