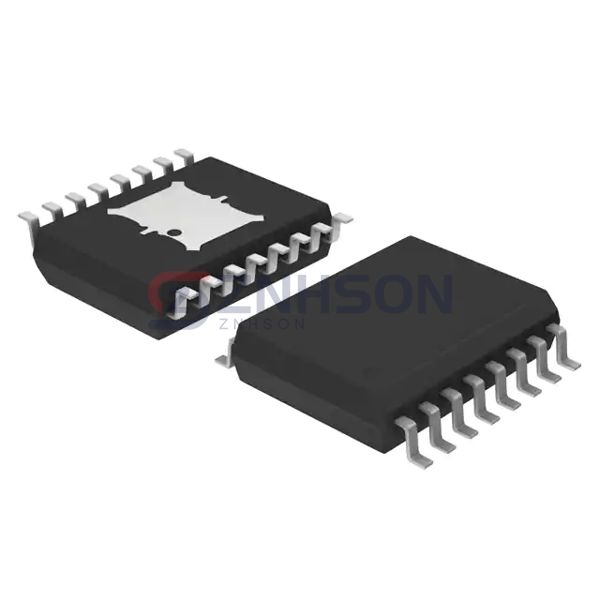

NCV8509PDW25R2G
onsemi
onsemi
IC REG LINEAR 5V/2.5V 16SOIC
$1.48
Available to order
Reference Price (USD)
1,000+
$2.05436
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NCV8509PDW25R2G by onsemi is a high-efficiency PMIC - Voltage Regulators - Linear IC designed to meet the needs of today's advanced electronic systems. This IC offers superior voltage regulation with features like fast transient response, low noise, and high accuracy. Its robust construction ensures long-term reliability, making it a perfect fit for both commercial and industrial applications.
In the PMIC - Voltage Regulators - Linear category, the NCV8509PDW25R2G stands out for its ability to handle varying load conditions without compromising performance. It provides excellent line regulation and low quiescent current, which are essential for energy-efficient designs. Additionally, its built-in protection mechanisms safeguard against over-voltage and short-circuit conditions.
The NCV8509PDW25R2G is employed in diverse fields, including medical imaging, consumer electronics, and military equipment. For instance, it is used in MRI machines, high-end audio systems, and defense communication devices. Its versatility and dependable performance make it a cornerstone in modern electronic engineering.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 50V
- Voltage - Output (Min/Fixed): 5V, 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 100mA, -
- Current - Output: 115mA, 100mA
- Current - Quiescent (Iq): 175 µA
- Current - Supply (Max): 10 mA
- PSRR: -
- Control Features: Reset
- Protection Features: Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width) Exposed Pad
- Supplier Device Package: 16-SOIC
