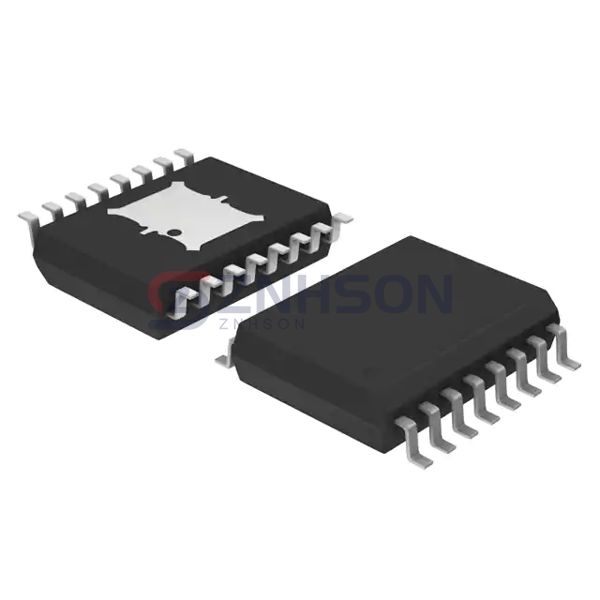

NCV8509PDW26R2G
onsemi
onsemi
IC REG LINEAR 5V/2.6V 16SOIC
$1.96
Available to order
Reference Price (USD)
1+
$1.96000
500+
$1.9404
1000+
$1.9208
1500+
$1.9012
2000+
$1.8816
2500+
$1.862
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NCV8509PDW26R2G from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 50V
- Voltage - Output (Min/Fixed): 5V, 2.6V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.6V @ 100mA, -
- Current - Output: 115mA, 100mA
- Current - Quiescent (Iq): 175 µA
- Current - Supply (Max): 10 mA
- PSRR: -
- Control Features: Reset
- Protection Features: Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width) Exposed Pad
- Supplier Device Package: 16-SOIC
