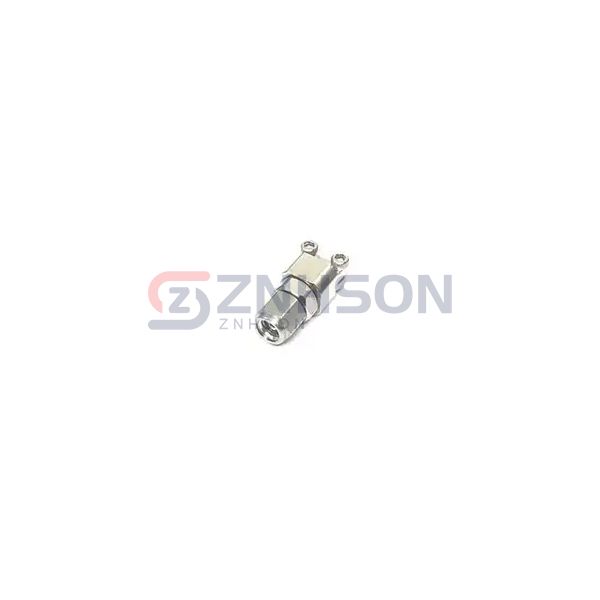

NE00MS001
WITHWAVE CO LTD
WITHWAVE CO LTD
END LAUNCH 1.0 MM CONNECTOR, DC
$400.00
Available to order
Reference Price (USD)
1+
$400.00000
500+
$396
1000+
$392
1500+
$388
2000+
$384
2500+
$380
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NE00MS001 from WITHWAVE CO LTD represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The NE00MS001 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: 1.0mm
- Connector Type: Plug, Male Pin
- Contact Termination: Compression
- Shield Termination: Screw
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 110 GHz
- Number of Ports: 1
- Features: Mounting Hardware
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
