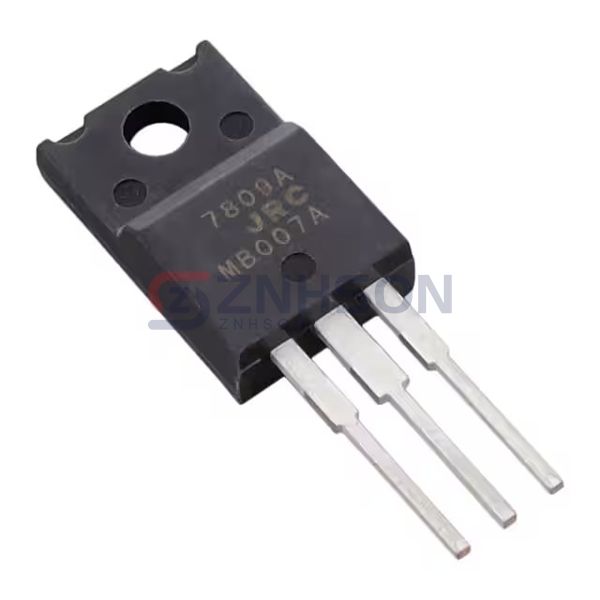

NJM7809FA
Nisshinbo Micro Devices Inc.
Nisshinbo Micro Devices Inc.
IC REG LINEAR 9V 1.5A TO220F
$0.88
Available to order
Reference Price (USD)
1+
$0.88000
10+
$0.78100
25+
$0.70560
100+
$0.61740
250+
$0.54180
500+
$0.47880
1,000+
$0.37800
2,500+
$0.35280
5,000+
$0.33516
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NJM7809FA from Nisshinbo Micro Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 35V
- Voltage - Output (Min/Fixed): 9V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -
- Current - Output: 1.5A
- Current - Quiescent (Iq): 6 mA
- Current - Supply (Max): -
- PSRR: 72dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Short Circuit
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F
