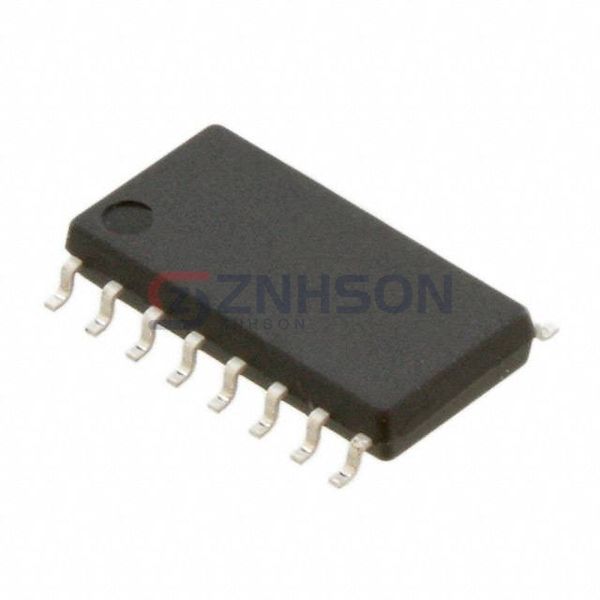

NJU4052BM
Nisshinbo Micro Devices Inc.
Nisshinbo Micro Devices Inc.
IC MUX/DEMUX DUAL 4X1 16DMP
$0.70
Available to order
Reference Price (USD)
2,000+
$0.65520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Nisshinbo Micro Devices Inc.'s NJU4052BM redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The NJU4052BM is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 160Ohm
- Channel-to-Channel Matching (ΔRon): 5Ohm
- Voltage - Supply, Single (V+): 3V ~ 18V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 500ns, 500ns
- -3db Bandwidth: -
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.209", 5.30mm Width)
- Supplier Device Package: 16-DMP
