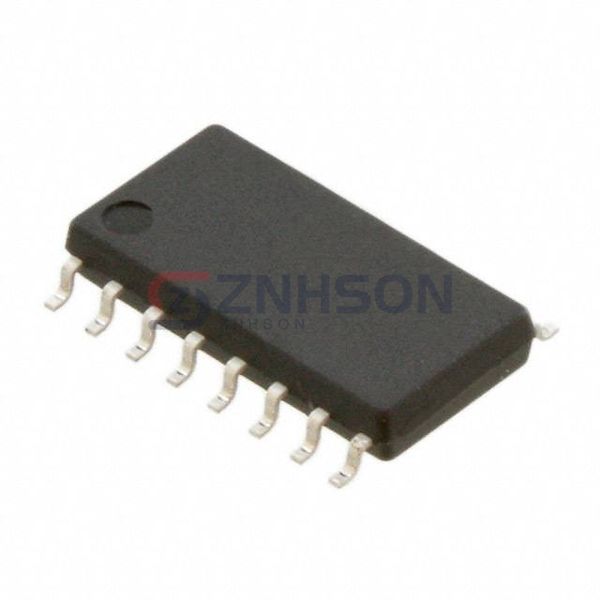

NJU7301M
Nisshinbo Micro Devices Inc.
Nisshinbo Micro Devices Inc.
IC SWITCH QUAD SPST 16DMP
$1.64
Available to order
Reference Price (USD)
2,000+
$1.45555
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NJU7301M by Nisshinbo Micro Devices Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The NJU7301M is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 200Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±15V
- Switch Time (Ton, Toff) (Max): 600ns, 450ns
- -3db Bandwidth: -
- Charge Injection: 20pC
- Channel Capacitance (CS(off), CD(off)): 5pF, 5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.209", 5.30mm Width)
- Supplier Device Package: 16-DMP
