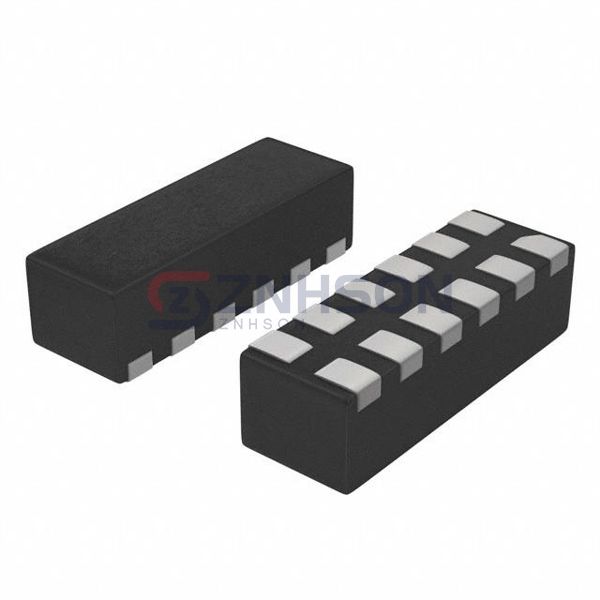

NLAS3158MNR2G
onsemi
onsemi
IC SWITCH DUAL SPDT 12DFN
$0.87
Available to order
Reference Price (USD)
3,000+
$0.22519
6,000+
$0.20966
15,000+
$0.20189
30,000+
$0.19413
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NLAS3158MNR2G - onsemi's most advanced configurable analog switch IC, featuring programmable channel sequencing and built-in self-test capabilities. As a star product in our Interface components range, it offers 64:1 multiplexing ratio in compact QFN packages. The NLAS3158MNR2G enables next-generation designs in quantum computing control systems, telescope focal plane arrays, and neural interface prosthetics. Its dynamic on-resistance compensation technology maintains consistent performance across temperature variations. Other notable applications include: particle accelerator beam controls, underwater sonar arrays, and high-energy physics detector readout systems.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 13Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 5.2ns, 3.5ns
- -3db Bandwidth: 250MHz
- Charge Injection: 7pC
- Channel Capacitance (CS(off), CD(off)): 2.3pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -54dB @ 10MHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 12-WFDFN Exposed Pad
- Supplier Device Package: 12-DFN (3x1)
