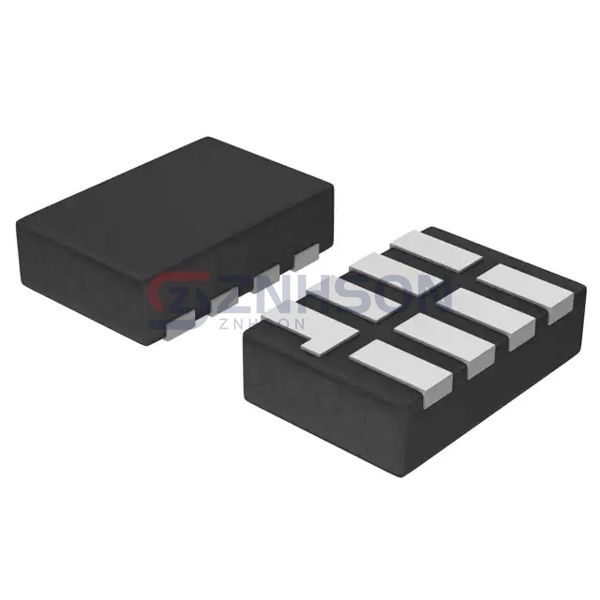

NLAS5213BMUTAG
onsemi
onsemi
IC SWITCH DUAL SPST 8UDFN
$0.16
Available to order
Reference Price (USD)
1+
$0.16000
500+
$0.1584
1000+
$0.1568
1500+
$0.1552
2000+
$0.1536
2500+
$0.152
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's NLAS5213BMUTAG redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The NLAS5213BMUTAG is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 1.3Ohm
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 4.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 20ns, 15ns
- -3db Bandwidth: 496MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 19pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -97dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 8-UFDFN
- Supplier Device Package: 8-UDFN (1.8x1.2)
