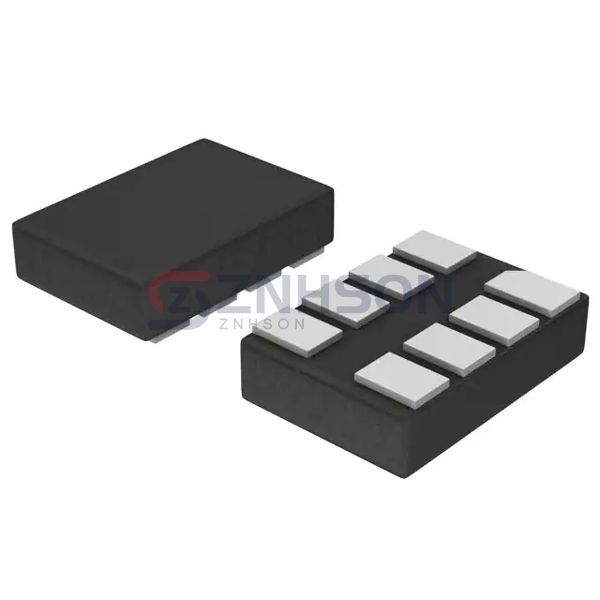

NLX3G14AMX1TCG
onsemi
onsemi
IC INVERT SCHMITT 3CH 3IN 8ULLGA
$0.10
Available to order
Reference Price (USD)
1+
$0.10000
500+
$0.099
1000+
$0.098
1500+
$0.097
2000+
$0.096
2500+
$0.095
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your digital designs with onsemi's NLX3G14AMX1TCG, a premium Logic - Gates and Inverters solution. This IC features ultra-low power consumption (typical ICC < 1 A) without sacrificing speed, making it ideal for battery-powered devices. The robust design includes overvoltage tolerance on inputs and power-off protection. Application areas include sensor interfaces, motor control systems, and wireless communication modules. Specific implementations might involve smart meter designs, HVAC control boards, or automotive infotainment systems. With onsemi's reputation for quality, the NLX3G14AMX1TCG ensures reliable operation across commercial, industrial, and military temperature ranges.
Specifications
- Product Status: Obsolete
- Logic Type: Inverter
- Number of Circuits: 3
- Number of Inputs: 3
- Features: Schmitt Trigger
- Voltage - Supply: 1.65V ~ 5.5V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 32mA, 32mA
- Logic Level - Low: 0.2V ~ 1.2V
- Logic Level - High: 1.4V ~ 3.6V
- Max Propagation Delay @ V, Max CL: 4.9ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 8-ULLGA (1.95x1)
- Package / Case: 8-XFLGA
