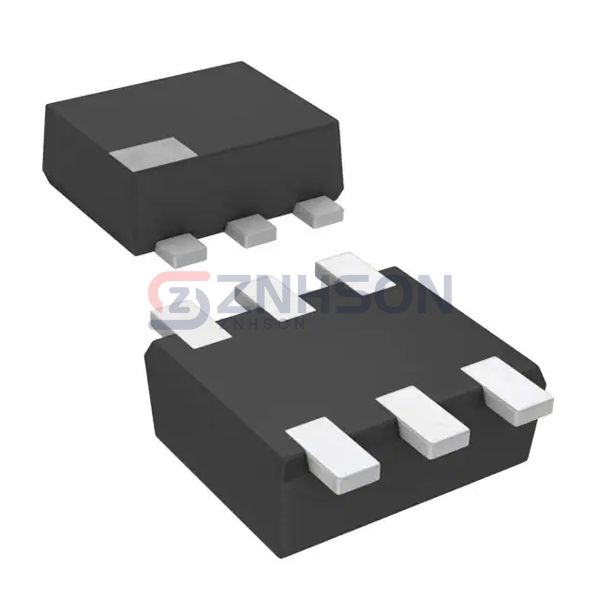

NP0G3D100A
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN/PNP SSSMINI6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of Panasonic Electronic Components's NP0G3D100A, a pre-biased BJT array tailored for modern electronics. This transistor array combines high current gain with low saturation voltage, making it ideal for switching and linear amplification. Its compact design and integrated resistors save PCB space while enhancing reliability. The NP0G3D100A is widely used in IoT devices, medical equipment, and renewable energy systems. Panasonic Electronic Components's advanced fabrication techniques guarantee consistent performance, even under high-stress conditions. Whether for prototyping or mass production, the NP0G3D100A offers a cost-effective solution for your semiconductor needs.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 80mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms, 47kOhms
- Resistor - Emitter Base (R2): 4.7kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 20 @ 5mA, 10V / 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz, 80MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-963
- Supplier Device Package: SSSMini6-F1
Related Products
Panasonic Electronic Components
XP0111600L
Rohm Semiconductor
EMF8T2R
Panasonic Electronic Components
DMC5610N0R
Panasonic Electronic Components
XN0111300L
Panasonic Electronic Components
UP04312G0L
Panasonic Electronic Components
DMG264H00R
Panasonic Electronic Components
XP0421M00L
Panasonic Electronic Components

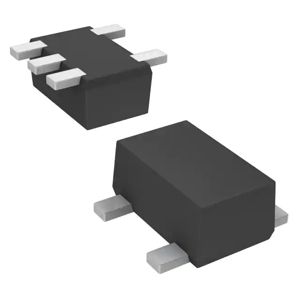

DMC5610M0R
