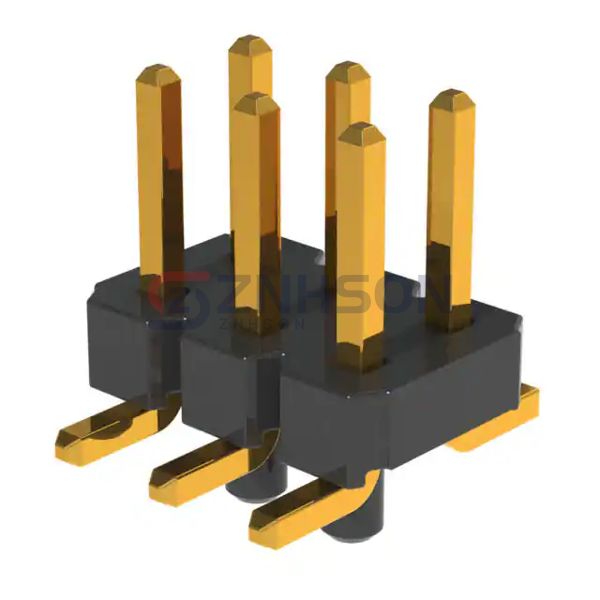

NRPN032MAMP-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 6POS 2MM
$0.63
Available to order
Reference Price (USD)
1+
$0.63000
10+
$0.58900
105+
$0.45124
525+
$0.39240
1,050+
$0.32373
5,040+
$0.28449
10,080+
$0.28340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NRPN032MAMP-RC by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the NRPN032MAMP-RC supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 2A
- Voltage Rating: 150V
Related Products
Samtec Inc.
MMT-103-02-SM-SH-P
Molex
0705450009
Samtec Inc.
TFM-105-01-S-D-DS
Molex
0713085480
TE Connectivity AMP Connectors

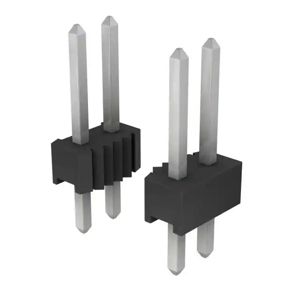

9-146254-0-34
Samtec Inc.

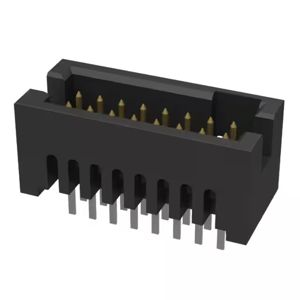

TFC-108-01-F-D
Samtec Inc.

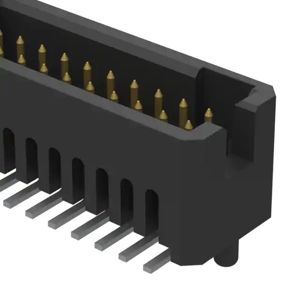

TFC-135-02-F-D-A-K
Samtec Inc.

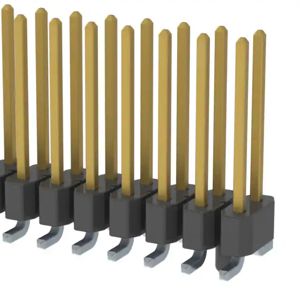

TSM-137-03-L-DV-A
