NRPN311PAEN-RC
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 31POS 2MM
$1.33
Available to order
Reference Price (USD)
1+
$1.33000
10+
$1.17200
25+
$1.10280
50+
$1.05660
100+
$1.01070
250+
$0.91884
500+
$0.82696
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

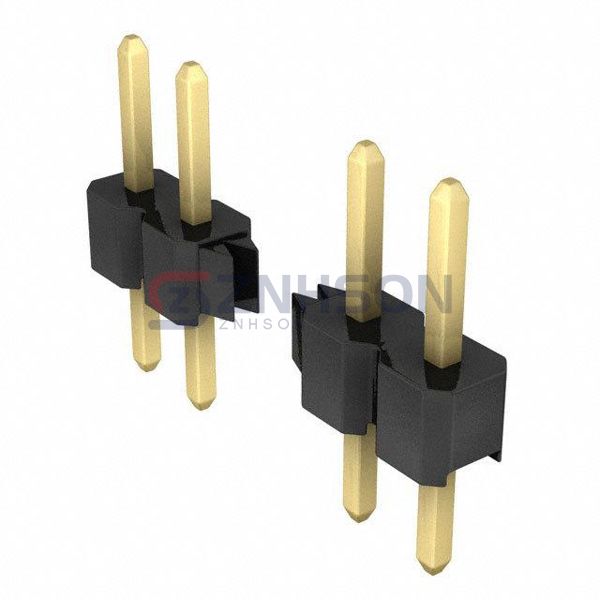

The NRPN311PAEN-RC by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 31
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.331" (8.40mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 150V
