NSB1706DMW5T1
onsemi
onsemi
TRANS 2NPN PREBIAS 0.25W SC70
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with onsemi's NSB1706DMW5T1, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The NSB1706DMW5T1 is widely used in lighting systems, portable electronics, and automotive accessories. onsemi's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the NSB1706DMW5T1 is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 4.7kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 250mW
- Mounting Type: Surface Mount
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Supplier Device Package: SC-88A (SC-70-5/SOT-353)
Related Products
Panasonic Electronic Components
DMG964H10R
Nexperia USA Inc.
PBLS4001D,115
Diodes Incorporated
DDA144EK-7-F
Toshiba Semiconductor and Storage
RN4908(T5L,F,T)
Rohm Semiconductor
IMH8AT108
onsemi
MUN5135DW1T1
Infineon Technologies
BCR 148S H6827
Panasonic Electronic Components
DMA266030R
Panasonic Electronic Components

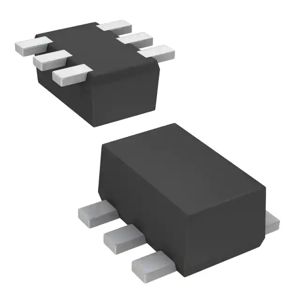

UP04213G0L
