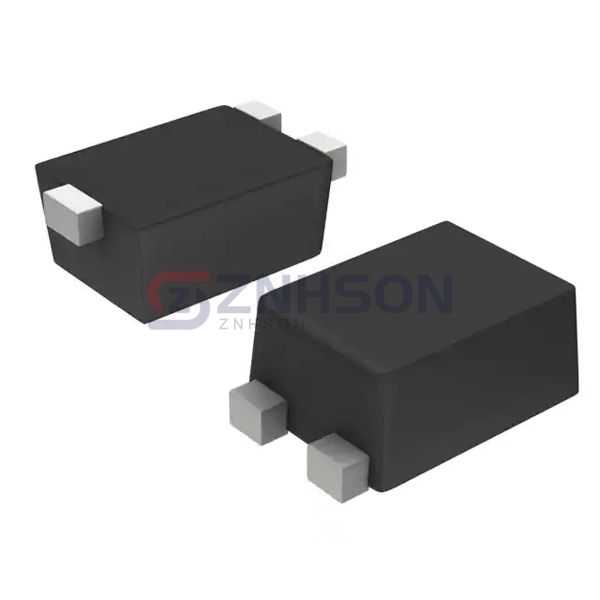

NSBC124XF3T5G
onsemi
onsemi
TRANS PREBIAS NPN 50V SOT1123
$0.08
Available to order
Reference Price (USD)
8,000+
$0.09765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For designers seeking plug-and-play transistor solutions, NSBC124XF3T5G offers unmatched convenience. onsemi's pre-biased BJT features: 1k /10k integrated resistors 100MHz transition frequency Pb-free construction Deploy in wireless charging pads, industrial automation, or security systems for reliable operation under varying load conditions.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 22 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 254 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-1123
- Supplier Device Package: SOT-1123
