NSBC124XPDXV6T5G
onsemi
onsemi
TRANS PREBIAS NPN/PNP SOT563
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSBC124XPDXV6T5G from onsemi is a high-performance Bipolar Junction Transistor (BJT) Array designed for precision applications. This pre-biased transistor array integrates multiple BJTs in a compact package, offering excellent thermal stability and consistent performance. Ideal for amplification and switching circuits, the NSBC124XPDXV6T5G ensures low noise and high gain, making it a reliable choice for industrial and consumer electronics. Common applications include motor control, LED drivers, and audio amplifiers. With robust construction and advanced manufacturing techniques, onsemi's NSBC124XPDXV6T5G delivers unmatched reliability in demanding environments.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 22kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: -
- Power - Max: 500mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
Related Products
Panasonic Electronic Components
DMC564010R
Panasonic Electronic Components
DMA5610H0R
Panasonic Electronic Components
DMC964070R
Panasonic Electronic Components
DMC561000R
Panasonic Electronic Components
DMA561010R
Rohm Semiconductor
UMA6NTR
Panasonic Electronic Components

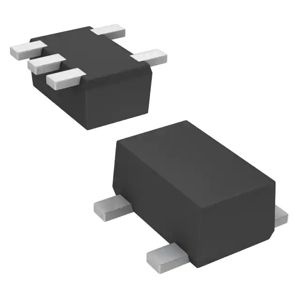

DMA561040R
Rohm Semiconductor

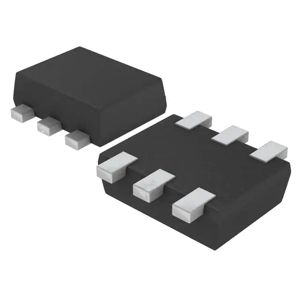

EMH25FHAT2R
onsemi

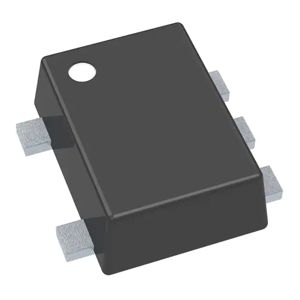

EMG2DXV5T1G
