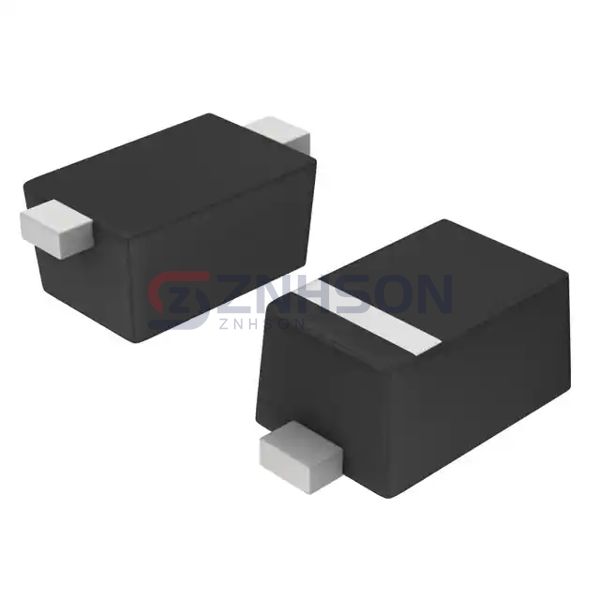

NSR0520V2T5G
onsemi
onsemi
DIODE SCHOTTKY 20V 500MA SOD523
$0.46
Available to order
Reference Price (USD)
8,000+
$0.07560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the NSR0520V2T5G single rectifier diode from onsemi. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The NSR0520V2T5G is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. onsemi's commitment to innovation ensures that the NSR0520V2T5G meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 500mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 480 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 75 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SOD-523
- Operating Temperature - Junction: -55°C ~ 125°C
