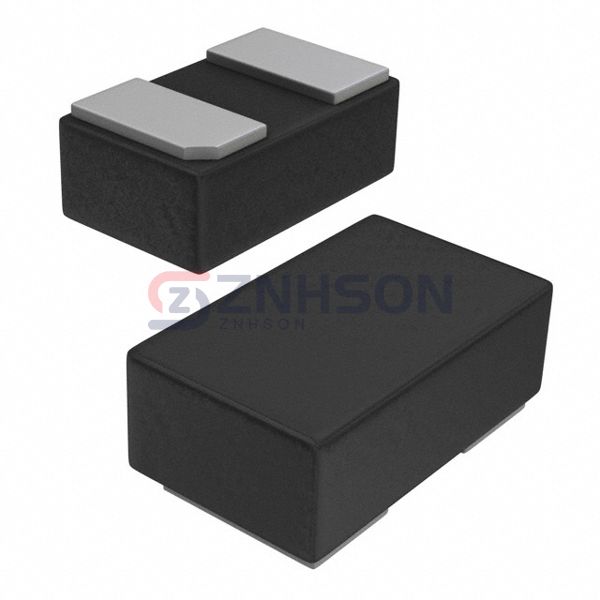

NSR05301MX4T5G
onsemi
onsemi
01005_TRENCH_SCHOTTKY_30V
$0.47
Available to order
Reference Price (USD)
10,000+
$0.06080
30,000+
$0.05700
50,000+
$0.05320
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSR05301MX4T5G from onsemi is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust onsemi's NSR05301MX4T5G for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 500mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 11 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 30 V
- Capacitance @ Vr, F: 19pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 01005 (0402 Metric)
- Supplier Device Package: 2-X4DFN (0.45x0.24)
- Operating Temperature - Junction: -55°C ~ 125°C
