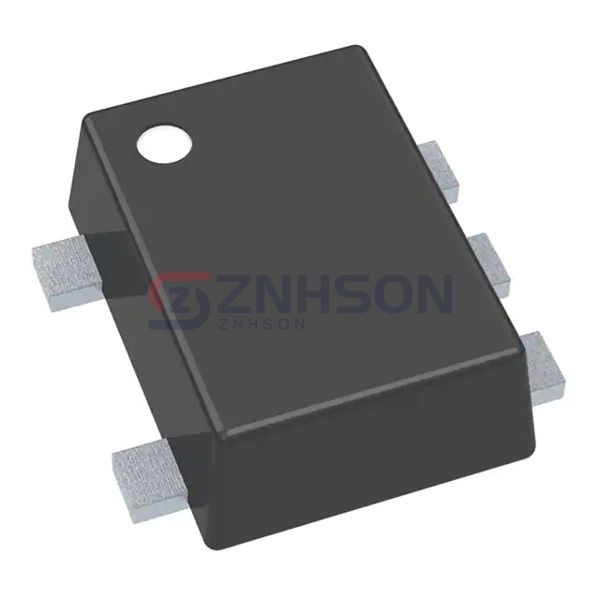

NSTB1002DXV5T1
onsemi
onsemi
TRANS NPN PREBIAS/PNP 0.5W SOT55
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSTB1002DXV5T1 from onsemi represents the pinnacle of pre-biased BJT array technology. Designed for high-density circuits, this product features low on-resistance and fast switching speeds, ideal for digital and analog applications. Its robust construction ensures reliable operation in telecommunications, computing, and industrial machinery. onsemi's expertise in semiconductor manufacturing guarantees that the NSTB1002DXV5T1 meets the highest industry standards. Whether you're designing advanced control systems or simple electronic switches, this transistor array offers unparalleled performance and versatility.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN Pre-Biased, 1 PNP
- Current - Collector (Ic) (Max): 100mA, 200mA
- Voltage - Collector Emitter Breakdown (Max): 50V, 40V
- Resistor - Base (R1): 47kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V / 100 @ 1mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA / 400mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 500mW
- Mounting Type: Surface Mount
- Package / Case: SOT-553
- Supplier Device Package: SOT-553
