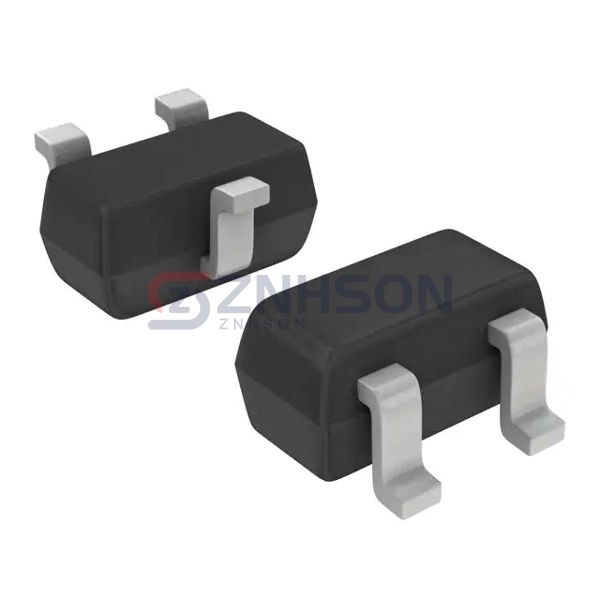

NSVDAN222T1G
onsemi
onsemi
DIODE SW 80V DUAL SC75-3
$0.37
Available to order
Reference Price (USD)
3,000+
$0.06540
6,000+
$0.05886
15,000+
$0.05232
30,000+
$0.04905
75,000+
$0.04578
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSVDAN222T1G from onsemi is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose onsemi's NSVDAN222T1G for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 70 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
