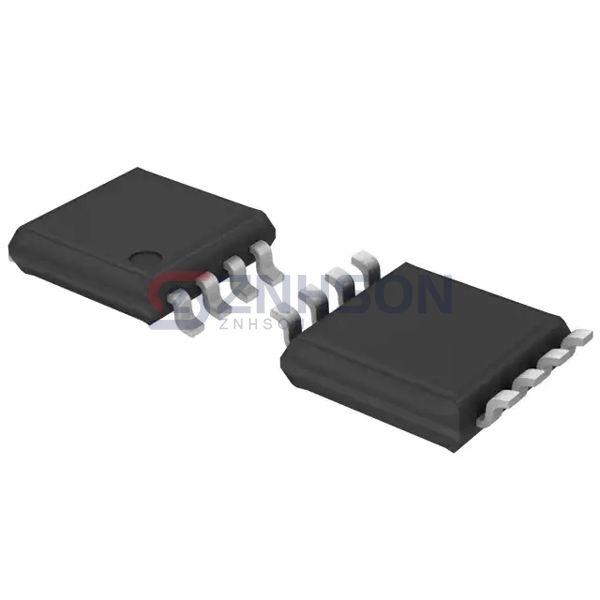

NTB0102DP,125
NXP USA Inc.
NXP USA Inc.
IC TRNSLTR BIDIRECTIONAL 8TSSOP
$1.25
Available to order
Reference Price (USD)
3,000+
$0.36764
6,000+
$0.34926
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
NXP USA Inc.'s NTB0102DP,125 stands out in the Logic - Translators, Level Shifters segment with its unique combination of speed and power efficiency. This bi-directional voltage translator supports data rates up to 100Mbps while consuming minimal power, thanks to its advanced CMOS technology. The auto-direction sensing eliminates the need for additional control signals, reducing design complexity. Practical applications range from gaming consoles (interface between high-speed memory and low-voltage processors) to industrial HMIs (connecting touch panels with various voltage requirements) and satellite communications equipment.
Specifications
- Product Status: Active
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 2
- Voltage - VCCA: 1.2 V ~ 3.6 V
- Voltage - VCCB: 1.65 V ~ 5.5 V
- Input Signal: -
- Output Signal: -
- Output Type: Tri-State, Non-Inverted
- Data Rate: 100Mbps
- Operating Temperature: -40°C ~ 125°C (TA)
- Features: Auto-Direction Sensing
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-TSSOP
