NTBS9D0N10MC
onsemi
onsemi
MOSFET N-CH 100V 14A/60A TO263
$3.07
Available to order
Reference Price (USD)
1+
$3.07000
500+
$3.0393
1000+
$3.0086
1500+
$2.9779
2000+
$2.9472
2500+
$2.9165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTBS9D0N10MC by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the NTBS9D0N10MC is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 9mOhm @ 23A, 10V
- Vgs(th) (Max) @ Id: 4V @ 131µA
- Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1695 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 68W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D²PAK-3 (TO-263-3)
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Microchip Technology
TN0610N3-G-P003
onsemi
NDD03N40ZT4G
Rohm Semiconductor
RQ3L090GNTB
Microchip Technology
APT10086BVRG
onsemi

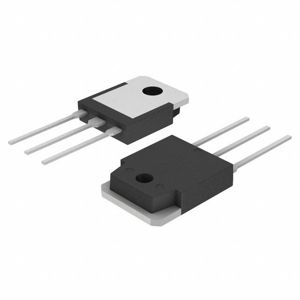

FDA18N50
Rohm Semiconductor

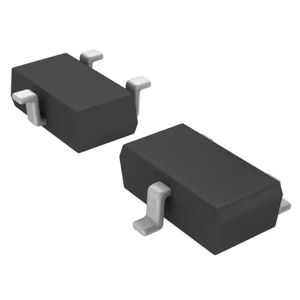

RQ5E040RPTL
onsemi
NTMFS4847NAT1G
IXYS

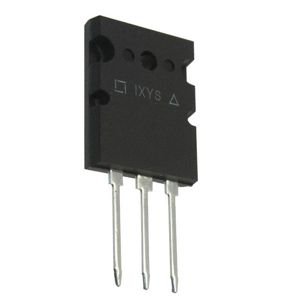

IXFB40N110Q3
