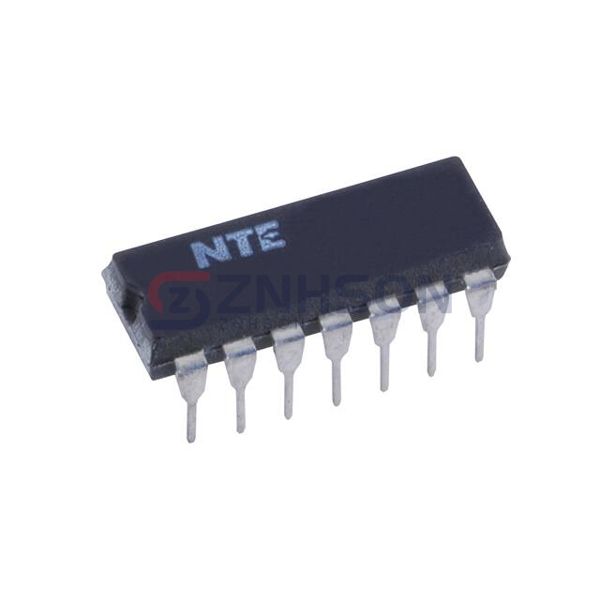

NTE4000
NTE Electronics, Inc
NTE Electronics, Inc
IC GATE NOR 3CH 3-INP 14DIP
$1.06
Available to order
Reference Price (USD)
1+
$1.06000
500+
$1.0494
1000+
$1.0388
1500+
$1.0282
2000+
$1.0176
2500+
$1.007
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTE4000 by NTE Electronics, Inc sets new standards in the Logic - Gates and Inverters category of Integrated Circuits. Featuring advanced silicon-gate CMOS technology, this IC delivers superior performance in logic level conversion and signal gating applications. Notable characteristics include symmetrical output drive capability, balanced propagation delays, and 3-state outputs for bus-oriented applications. Electronic designers frequently incorporate this component in data acquisition systems, test equipment, and digital displays. Practical applications range from factory automation to renewable energy systems and telecommunications infrastructure. The NTE4000's EMC compliance ensures trouble-free integration into complex electronic systems.
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 3
- Number of Inputs: 3
- Features: -
- Voltage - Supply: 3V ~ 18V
- Current - Quiescent (Max): 1 µA
- Current - Output High, Low: 1.8mA, 4.2mA
- Logic Level - Low: 1V ~ 2.5V
- Logic Level - High: 4V ~ 12.5V
- Max Propagation Delay @ V, Max CL: 80ns @ 15V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-DIP
- Package / Case: 14-DIP (0.300", 7.62mm)
