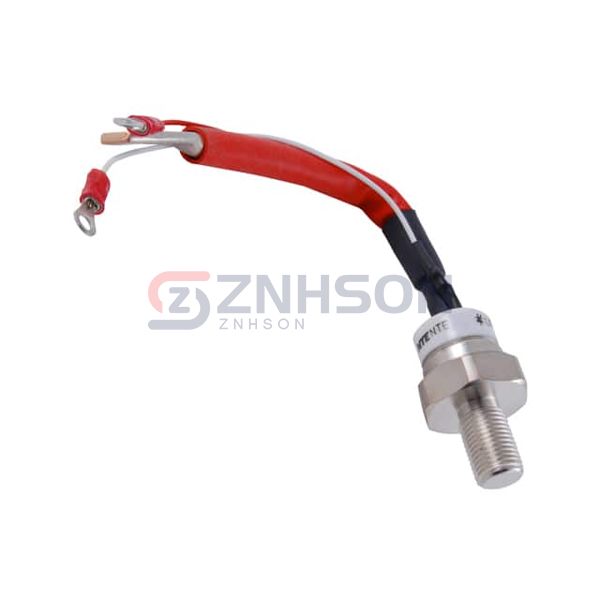

NTE5570
NTE Electronics, Inc
NTE Electronics, Inc
SCR 200V 125A TO94
$72.71
Available to order
Reference Price (USD)
1+
$72.71000
500+
$71.9829
1000+
$71.2558
1500+
$70.5287
2000+
$69.8016
2500+
$69.0745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTE5570 from NTE Electronics, Inc redefines reliability in the Thyristors - SCRs category of Discrete Semiconductor Products. With its unique reverse blocking capability and high temperature operation range, this SCR is indispensable for power electronics. Typical uses include uninterruptible power supplies, induction heating, and plasma cutting machines. For example, it's essential in semiconductor manufacturing equipment. NTE Electronics, Inc's NTE5570 combines advanced engineering with practical functionality.
Specifications
- Product Status: Active
- Voltage - Off State: 200 V
- Voltage - Gate Trigger (Vgt) (Max): 2.5 V
- Current - Gate Trigger (Igt) (Max): 120 mA
- Voltage - On State (Vtm) (Max): 1.6 V
- Current - On State (It (AV)) (Max): 80 A
- Current - On State (It (RMS)) (Max): 125 A
- Current - Hold (Ih) (Max): 150 mA
- Current - Off State (Max): 15 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 1600A, 1900A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: TO-209AC, TO-94-4, Stud
- Supplier Device Package: TO-94
