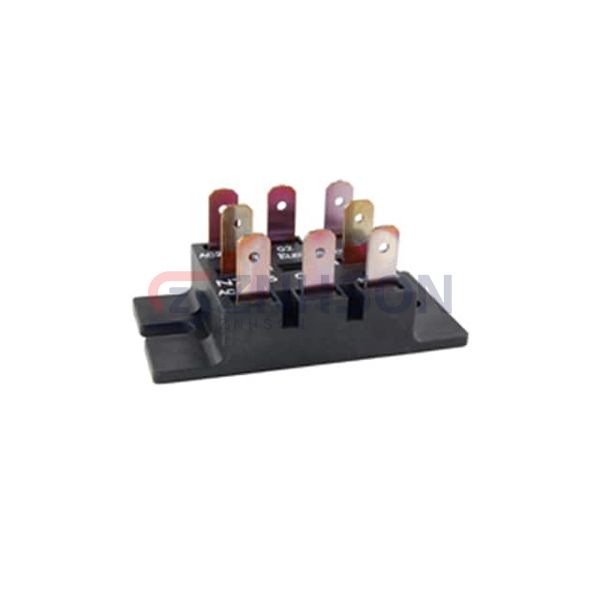

NTE5702
NTE Electronics, Inc
NTE Electronics, Inc
INDUSTRIAL POWER MODULE
$82.86
Available to order
Reference Price (USD)
1+
$82.86000
500+
$82.0314
1000+
$81.2028
1500+
$80.3742
2000+
$79.5456
2500+
$78.717
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTE5702 Thyristors - SCRs - Modules by NTE Electronics, Inc are engineered to deliver exceptional power handling and control in discrete semiconductor applications. These modules feature high voltage and current ratings, making them suitable for heavy-duty industrial use. Their compact design and efficient heat dissipation ensure reliable operation under extreme conditions. Widely used in welding equipment, UPS systems, and HVAC controls, these SCR modules provide the precision and durability needed for critical operations. Choose NTE Electronics, Inc for cutting-edge semiconductor technology that meets the highest industry standards.
Specifications
- Product Status: Active
- Structure: Bridge, Single Phase - SCRs/Diodes (Layout 3)
- Number of SCRs, Diodes: 2 SCRs, 2 Diodes
- Voltage - Off State: 1.2 kV
- Current - On State (It (AV)) (Max): 12.5 A
- Current - On State (It (RMS)) (Max): 14.5 A
- Voltage - Gate Trigger (Vgt) (Max): 2 V
- Current - Gate Trigger (Igt) (Max): 60 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 357A, 375A
- Current - Hold (Ih) (Max): 100 mA
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: -
- Package / Case: Module
