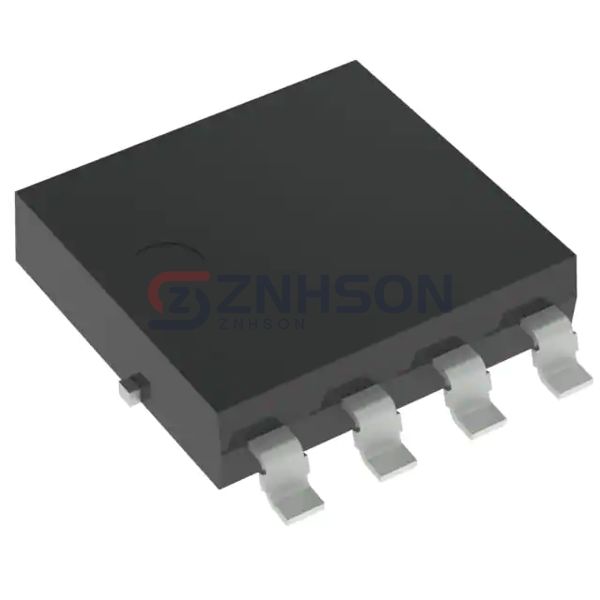

NTMJS0D9N04CLTWG
onsemi
onsemi
MOSFET N-CH 40V 50A/330A 8LFPAK
$2.96
Available to order
Reference Price (USD)
1+
$2.96000
500+
$2.9304
1000+
$2.9008
1500+
$2.8712
2000+
$2.8416
2500+
$2.812
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTMJS0D9N04CLTWG by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the NTMJS0D9N04CLTWG is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 50A (Ta), 330A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.82mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 190µA
- Gate Charge (Qg) (Max) @ Vgs: 143 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 8862 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 167W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
