NTZD3156CT1G
onsemi
onsemi
MOSFET N/P-CH 20V SOT-563
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the NTZD3156CT1G by onsemi, a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the NTZD3156CT1G ensures energy efficiency and robust performance. onsemi's commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Obsolete
- FET Type: N and P-Channel
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 540mA, 430mA
- Rds On (Max) @ Id, Vgs: 550mOhm @ 540mA, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.5nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 72pF @ 16V
- Power - Max: 250mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
Related Products
Infineon Technologies
IRF5850
Infineon Technologies
AUIRF9952Q
onsemi
NTQD4154ZR2
Toshiba Semiconductor and Storage
SSM6N7002BFU(T5L,F
onsemi
NTMD2P01R2G
Infineon Technologies
BSL214NL6327HTSA1
Micro Commercial Co
MCQ4828-TP
Alpha & Omega Semiconductor Inc.
AON6978
onsemi

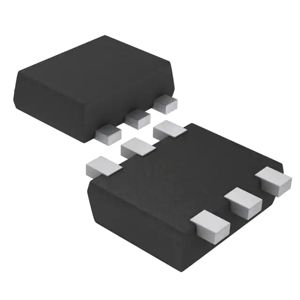

MCH6662-TL-W
