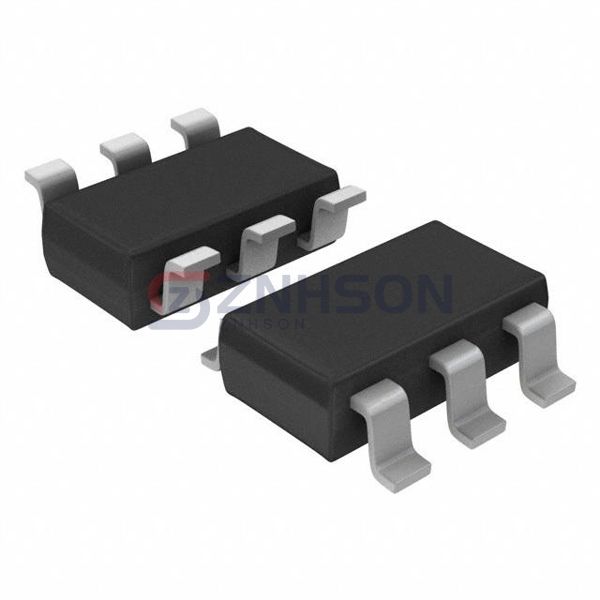

NUP2201MR6T1G
onsemi
onsemi
TVS DIODE 5VWM 20VC 6TSOP
$0.70
Available to order
Reference Price (USD)
3,000+
$0.19286
6,000+
$0.18042
15,000+
$0.16797
30,000+
$0.16590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NUP2201MR6T1G by onsemi is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the NUP2201MR6T1G can secure CAN bus lines in vehicles against voltage spikes. Rely on onsemi for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 2
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 20V
- Current - Peak Pulse (10/1000µs): 8A (8/20µs)
- Power - Peak Pulse: 500W
- Power Line Protection: Yes
- Applications: General Purpose
- Capacitance @ Frequency: 3pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6 Thin, TSOT-23-6
- Supplier Device Package: 6-TSOP
