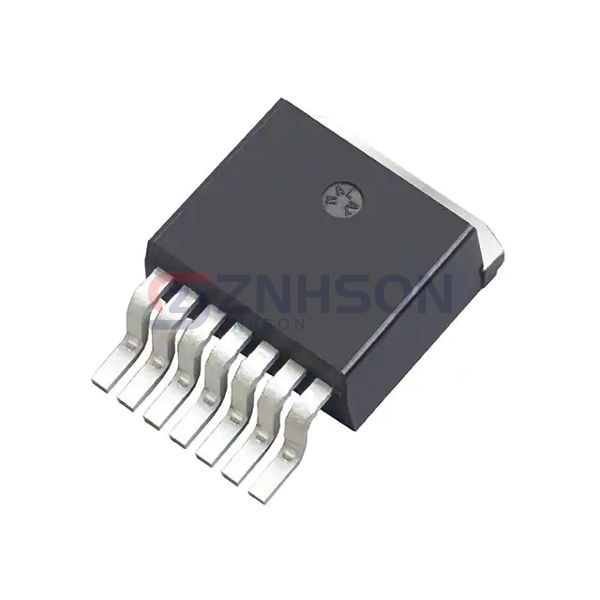

NVBG160N120SC1
onsemi
onsemi
SICFET N-CH 1200V 19.5A D2PAK
$11.36
Available to order
Reference Price (USD)
1+
$11.36000
500+
$11.2464
1000+
$11.1328
1500+
$11.0192
2000+
$10.9056
2500+
$10.792
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVBG160N120SC1 single MOSFET from onsemi is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the NVBG160N120SC1 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 19.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 224mOhm @ 12A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 33.8 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 678 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
