NVMFS6H824NWFT1G
onsemi
onsemi
MOSFET N-CH 80V 19A/103A 5DFN
$0.89
Available to order
Reference Price (USD)
1+
$0.89129
500+
$0.8823771
1000+
$0.8734642
1500+
$0.8645513
2000+
$0.8556384
2500+
$0.8467255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMFS6H824NWFT1G from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's NVMFS6H824NWFT1G for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 19A (Ta), 103A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4.5mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 4V @ 140µA
- Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2470 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 115W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 5-DFN (5x6) (8-SOFL)
- Package / Case: 8-PowerTDFN, 5 Leads
Related Products
Toshiba Semiconductor and Storage
TK3R2A10PL,S4X
Microchip Technology
APT6029SLLG
IXYS
IXTA230N04T4
Vishay Siliconix
SQJ412EP-T1_GE3
Fairchild Semiconductor

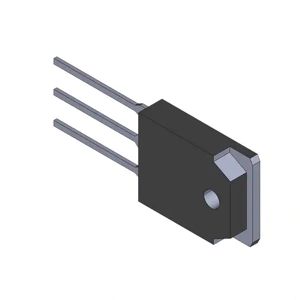

FQAF8N80
IXYS
IXTP48P05T
onsemi

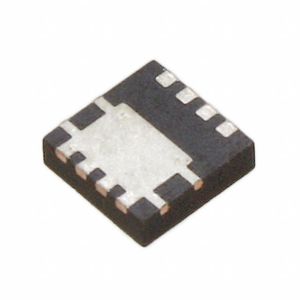

FDMC7660DC
