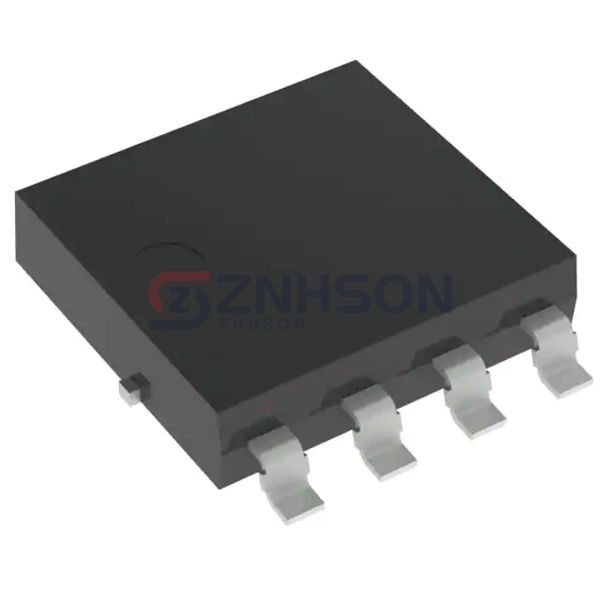

NVMJS0D9N04CLTWG
onsemi
onsemi
MOSFET N-CH 40V 50A/330A 8LFPAK
$2.50
Available to order
Reference Price (USD)
1+
$2.49529
500+
$2.4703371
1000+
$2.4453842
1500+
$2.4204313
2000+
$2.3954784
2500+
$2.3705255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMJS0D9N04CLTWG from onsemi redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the NVMJS0D9N04CLTWG offers the precision and reliability you need. Trust onsemi to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 50A (Ta), 330A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.82mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 190µA
- Gate Charge (Qg) (Max) @ Vgs: 143 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 8862 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 167W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
