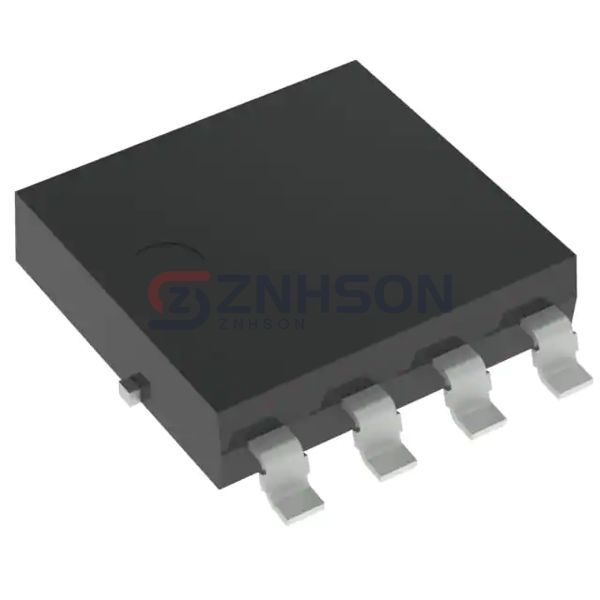

NVMJS1D7N04CTWG
onsemi
onsemi
MOSFET N-CH 40V 35A/185A 8LFPAK
$1.55
Available to order
Reference Price (USD)
1+
$1.55254
500+
$1.5370146
1000+
$1.5214892
1500+
$1.5059638
2000+
$1.4904384
2500+
$1.474913
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMJS1D7N04CTWG from onsemi redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the NVMJS1D7N04CTWG offers the precision and reliability you need. Trust onsemi to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 35A (Ta), 185A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.7mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 130µA
- Gate Charge (Qg) (Max) @ Vgs: 47 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3300 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 106W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
Related Products
Infineon Technologies
AUIRF3805STRL
Microchip Technology
APT24F50B
Microchip Technology
APT6038BLLG
Infineon Technologies
IRFH8318TRPBF
Rohm Semiconductor
RSS060P05HZGTB
Infineon Technologies
IPW60R099P6XKSA1
Nexperia USA Inc.
PSMN6R1-30YLDX
Renesas Electronics America Inc

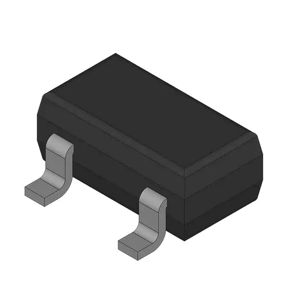

2SK2373ZE-TL-E
