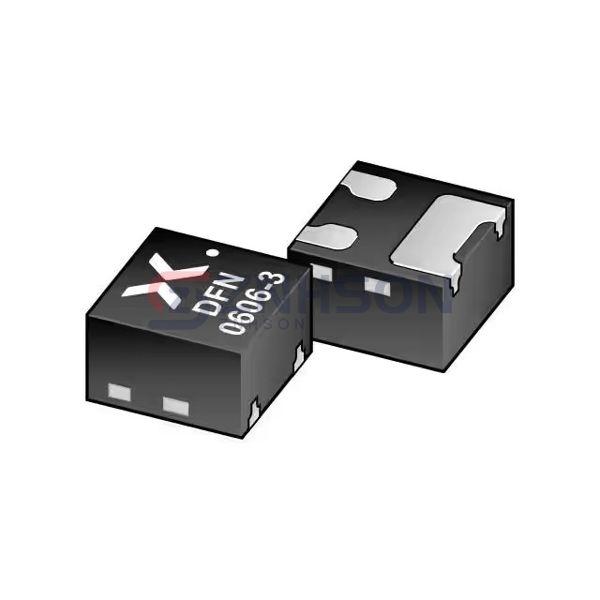

NX138AKHH
Nexperia USA Inc.
Nexperia USA Inc.
NX138AKH/SOT8001/DFN0606-3
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NX138AKHH single MOSFET from Nexperia USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the NX138AKHH is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 260mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
- Rds On (Max) @ Id, Vgs: 4.2Ohm @ 190mA, 10V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.6 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 15 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 360mW (Ta), 2.3W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN0606-3
- Package / Case: 3-XFDFN
