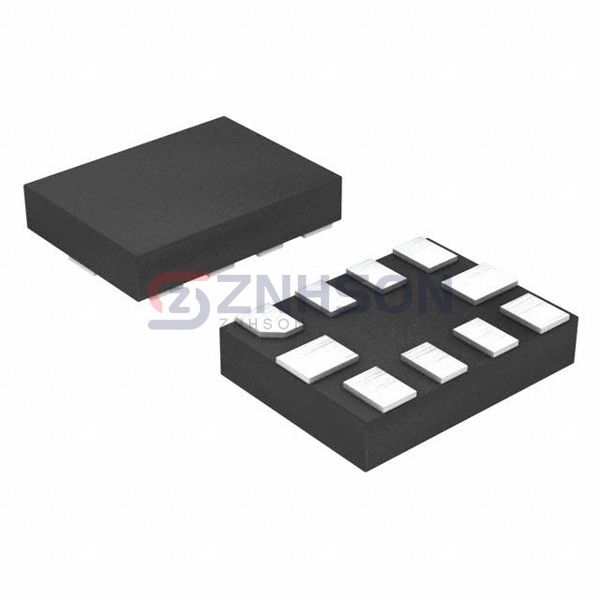

NX3L4684GM,132
NXP USA Inc.
NXP USA Inc.
IC ANALOG SWITCH SPDT 10XQFN
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with NXP USA Inc.'s NX3L4684GM,132, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The NX3L4684GM,132 meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 40mOhm
- Voltage - Supply, Single (V+): 1.4V ~ 4.3V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 45ns, 20ns
- -3db Bandwidth: 20MHz
- Charge Injection: 50pC
- Channel Capacitance (CS(off), CD(off)): 35pF
- Current - Leakage (IS(off)) (Max): 10nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-XFQFN
- Supplier Device Package: 10-XQFN (1.55x2)
