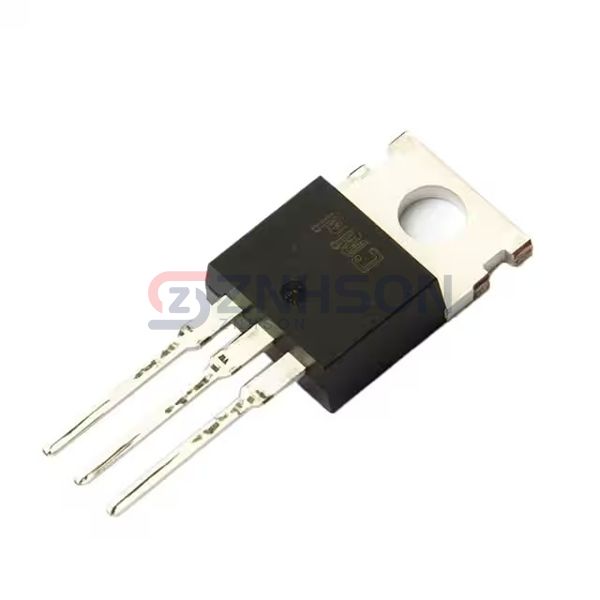

P3M06120T3
PN Junction Semiconductor
PN Junction Semiconductor
SICFET N-CH 650V 29A TO-220-3
$9.05
Available to order
Reference Price (USD)
1+
$9.05000
500+
$8.9595
1000+
$8.869
1500+
$8.7785
2000+
$8.688
2500+
$8.5975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the P3M06120T3 by PN Junction Semiconductor, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the P3M06120T3 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 650 V
- Current - Continuous Drain (Id) @ 25°C: 29A
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 158mOhm @ 10A, 15V
- Vgs(th) (Max) @ Id: 2.2V @ 5mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): +20V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: -
- FET Feature: -
- Power Dissipation (Max): 153W
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-2L
- Package / Case: TO-220-2
Related Products
Vishay Siliconix

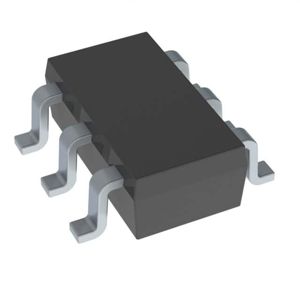

SQ3427EV-T1_GE3
Infineon Technologies

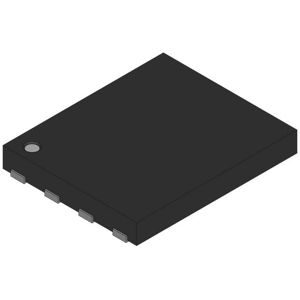

IPLK70R1K4P7ATMA1
Nexperia USA Inc.
BUK7Y18-55B,115
onsemi

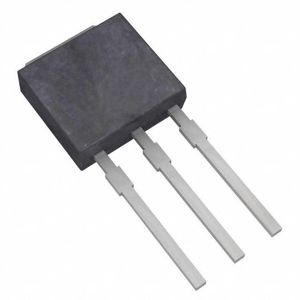

FQU9N25TU
Diodes Incorporated
DMNH6008SCTQ
IXYS

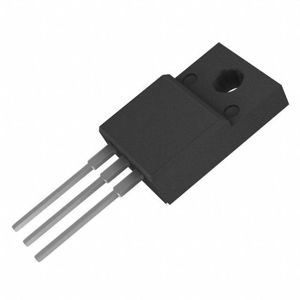

IXTP12N65X2M
Infineon Technologies

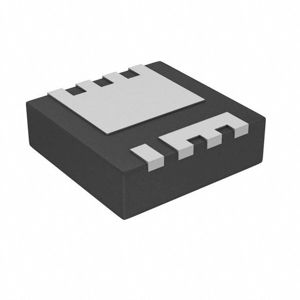

BSZ024N04LS6ATMA1
