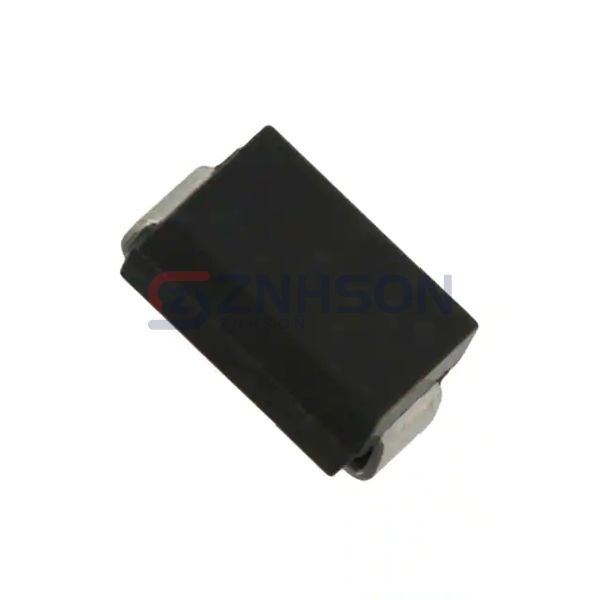

P6SMB56AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 47.8VWM 77VC DO214AA
$0.15
Available to order
Reference Price (USD)
1+
$0.15280
500+
$0.151272
1000+
$0.149744
1500+
$0.148216
2000+
$0.146688
2500+
$0.14516
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The P6SMB56AH by Taiwan Semiconductor Corporation is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the P6SMB56AH can secure CAN bus lines in vehicles against voltage spikes. Rely on Taiwan Semiconductor Corporation for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 47.8V
- Voltage - Breakdown (Min): 53.2V
- Voltage - Clamping (Max) @ Ipp: 77V
- Current - Peak Pulse (10/1000µs): 8.1A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
