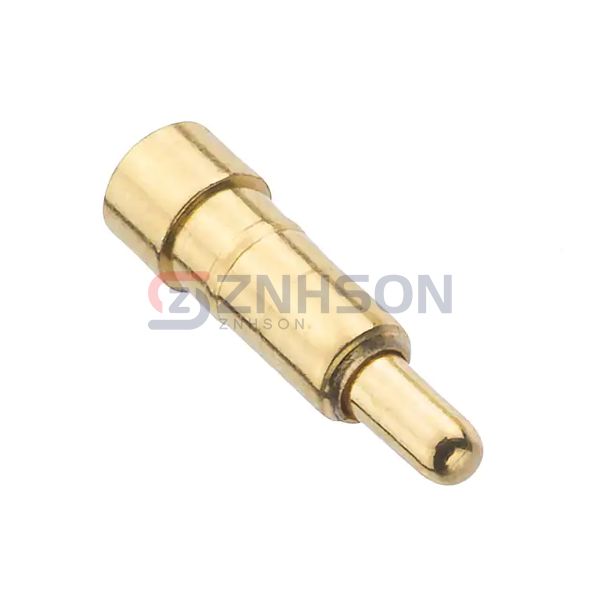

P70-1100045R
Harwin Inc.
Harwin Inc.
CONTACT SPRING LOADED SMD GOLD
$0.77
Available to order
Reference Price (USD)
650+
$0.41000
1,300+
$0.33825
1,950+
$0.32800
3,250+
$0.30750
6,500+
$0.29725
16,250+
$0.27265
32,500+
$0.26650
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Precision meets versatility in Harwin Inc.'s P70-1100045R modular Spring Loaded Contact system. This innovative Pressure Connectors solution allows engineers to mix-and-match plunger heads, spring forces, and housing materials for customized interconnect profiles. The category shines in prototyping applications, research lab equipment, and low-volume manufacturing with quick-ship configurations. Notable implementations include university robotics projects, particle physics detector interfaces, and Mars rover testbed connections. P70-1100045R supports unique requirements like ultra-low-force (10gf) contacts for delicate membrane switches or high-insertion-force (500gf) versions for power distribution modules - all with gold-over-nickel plating for superior corrosion resistance.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Surface Mount
- Maximum Working Height: 0.209" (5.30mm)
- Recommended Working Height: 0.197" (5.00mm)
- Minimum Working Height: 0.185" (4.70mm)
- Pad Layout Dimension: Circular - 0.079" (2.00mm)
- Operating Force - Initial: -
- Operating Force - Mid Compression: 124.41gf
- Plunger Size: 0.035" (0.90mm) Dia
- Features: -
- Mating Cycles: 10000
- Contact Material: Brass
- Contact Finish: Gold
- Contact Finish Thickness: 16.0µin (0.41µm)
