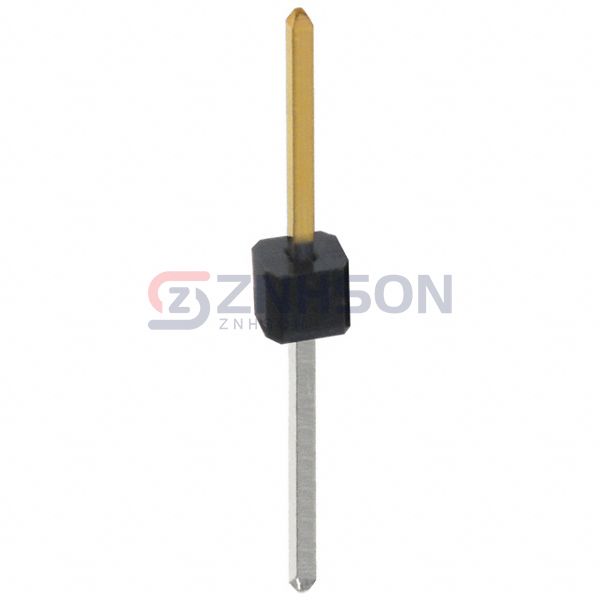

PBC01SFDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 1POS
$0.19
Available to order
Reference Price (USD)
1+
$0.19000
10+
$0.18000
25+
$0.15360
50+
$0.13440
100+
$0.12480
250+
$0.11040
500+
$0.10560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC01SFDN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PBC01SFDN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 1
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TLW-102-05-T-D
Preci-Dip
890-70-026-10-001101
Samtec Inc.
TSM-107-01-L-DV-P-TR
Molex
0878325822
Samtec Inc.
TSM-112-02-L-SH-A

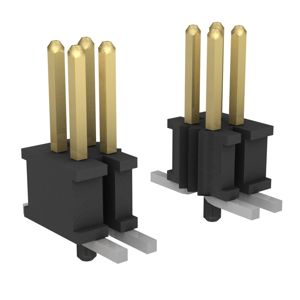

Samtec Inc.
FTSH-121-04-LM-D
Molex
1726470105

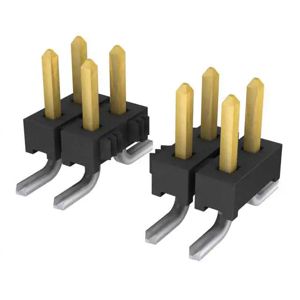

Samtec Inc.
