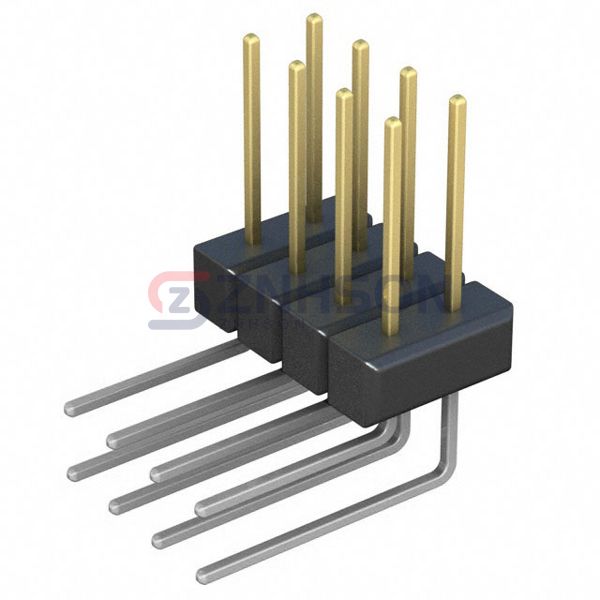

PBC04DBCN

Sullins Connector Solutions

Manufacturer

Sullins Connector Solutions

Description:

CONN HEADER R/A 8POS 2.54MM

Datasheet:

PBC04DBCN Datasheet

$2.66

Available to order

Reference Price (USD)

$2.66000

10+

$2.37600

100+

$1.95710

500+

$1.54700

1,000+

$1.32800

5,000+

$1.21151

10,000+

$1.16491

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your interconnections with the PBC04DBCN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PBC04DBCN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.

Specifications

Product Status: Discontinued at Digi-Key
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 8
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.230" (5.84mm)
Contact Length - Post: 0.300" (7.62mm)
Overall Contact Length: -
Insulation Height: 0.240" (6.10mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: -
Operating Temperature: -65°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -
