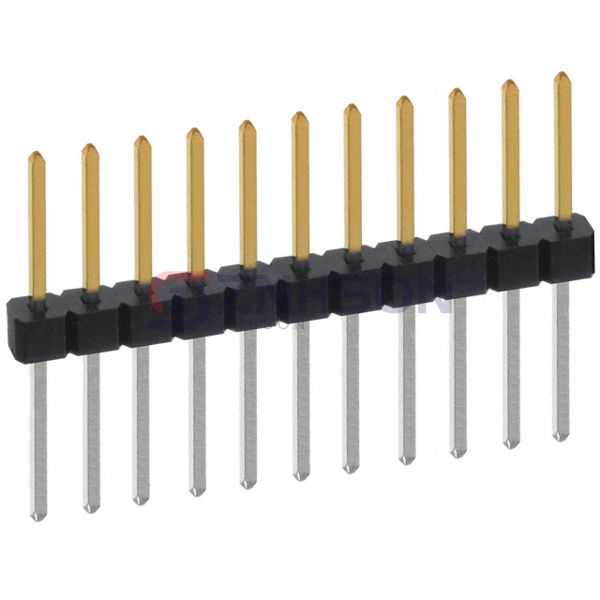

PBC11SFDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 11POS 2.54MM
$1.43
Available to order
Reference Price (USD)
1+
$1.43000
10+
$1.29400
25+
$1.21440
50+
$1.16160
100+
$1.10880
250+
$1.00320
500+
$0.92400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC11SFDN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PBC11SFDN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 11
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-104-02-LM-DH-A-P-TR
Preci-Dip
892-80-056-10-004101

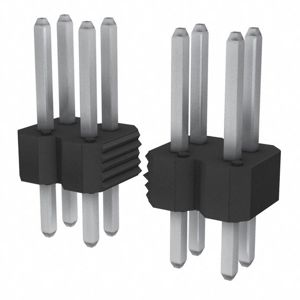

Amphenol ICC (FCI)
77313-402-72LF

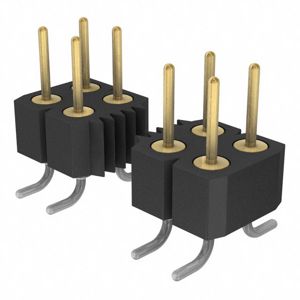

Preci-Dip
450-V3-210-00-106101

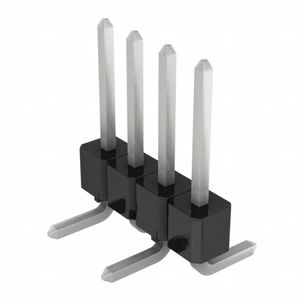

Sullins Connector Solutions
GEC04SFBN-M30

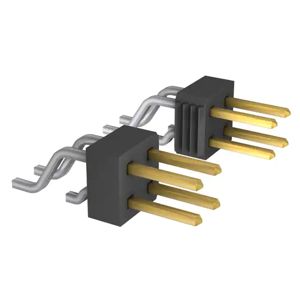

Samtec Inc.
TSM-117-01-L-DH-P-TR
Mill-Max Manufacturing Corp.

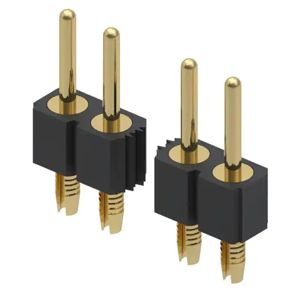

800-10-051-61-001000

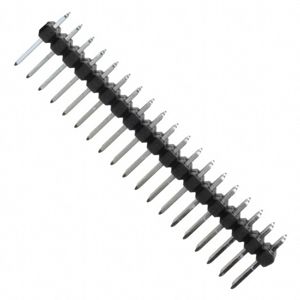

Molex
0010897381

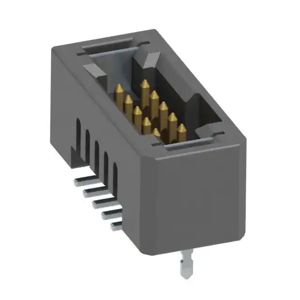

Samtec Inc.
