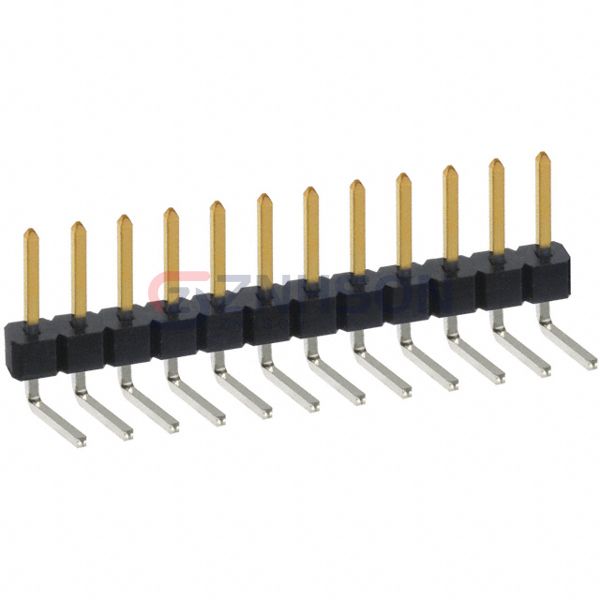

PBC12SBCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 12POS 2.54MM
$1.71
Available to order
Reference Price (USD)
1+
$1.71000
10+
$1.54800
25+
$1.45360
50+
$1.39040
100+
$1.32720
250+
$1.20080
500+
$1.10600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PBC12SBCN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PBC12SBCN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.300" (7.62mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
