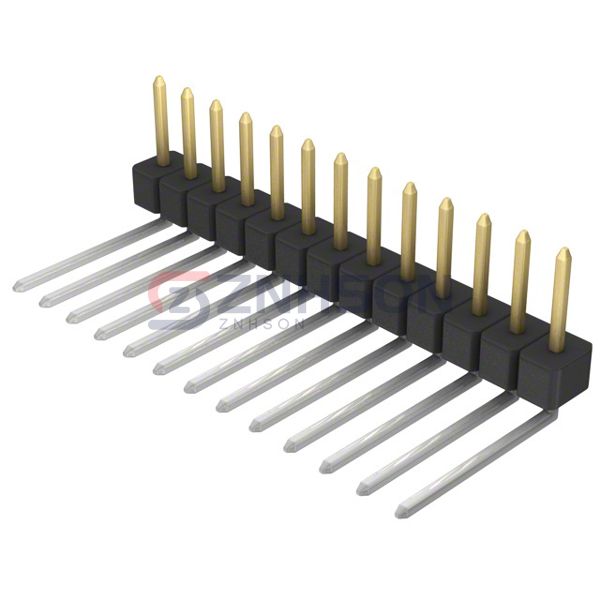

PBC13SBDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 13POS 2.54MM
$2.41
Available to order
Reference Price (USD)
1+
$2.41000
10+
$2.18700
25+
$2.05320
50+
$1.96380
100+
$1.87460
250+
$1.69608
500+
$1.56218
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC13SBDN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PBC13SBDN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.400" (10.16mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
