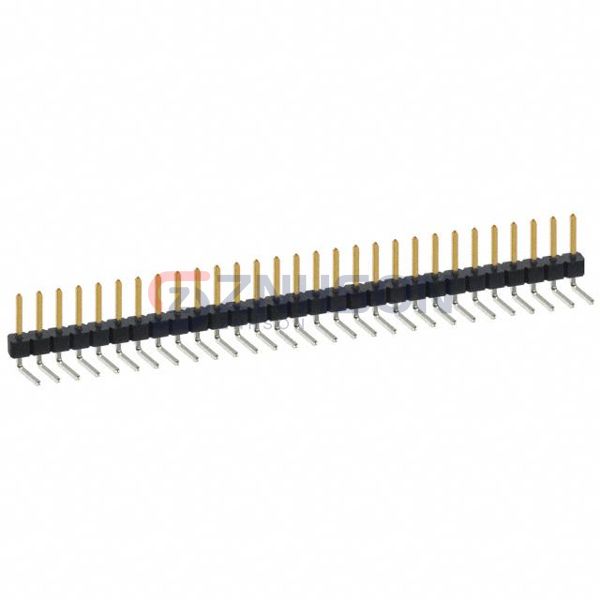

PBC29SBBN

Sullins Connector Solutions

Manufacturer

Sullins Connector Solutions

Description:

CONN HEADER R/A 29POS 2.54MM

Datasheet:

PBC29SBBN Datasheet

$2.76

Available to order

Reference Price (USD)

$2.76000

10+

$2.64500

25+

$2.42440

50+

$2.31420

100+

$2.20400

250+

$1.92852

500+

$1.87340

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the PBC29SBBN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PBC29SBBN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header, Breakaway
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 29
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.230" (5.84mm)
Contact Length - Post: 0.200" (5.08mm)
Overall Contact Length: -
Insulation Height: 0.140" (3.56mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polybutylene Terephthalate (PBT)
Features: -
Operating Temperature: -65°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -
