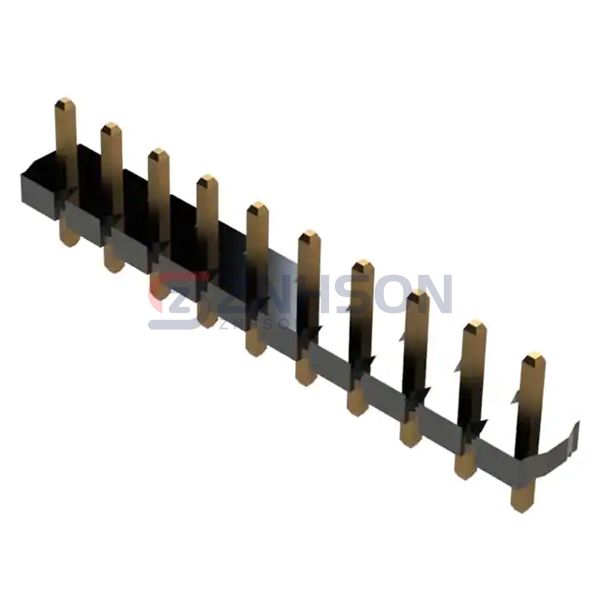

PC156H-24-S-01-T-LF
Major League Electronics
Major League Electronics
.156 Header
$1.89
Available to order
Reference Price (USD)
1+
$1.89000
500+
$1.8711
1000+
$1.8522
1500+
$1.8333
2000+
$1.8144
2500+
$1.7955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PC156H-24-S-01-T-LF by Major League Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Major League Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 24
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.475" (12.07mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.125" (3.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 7.9A
- Voltage Rating: -
