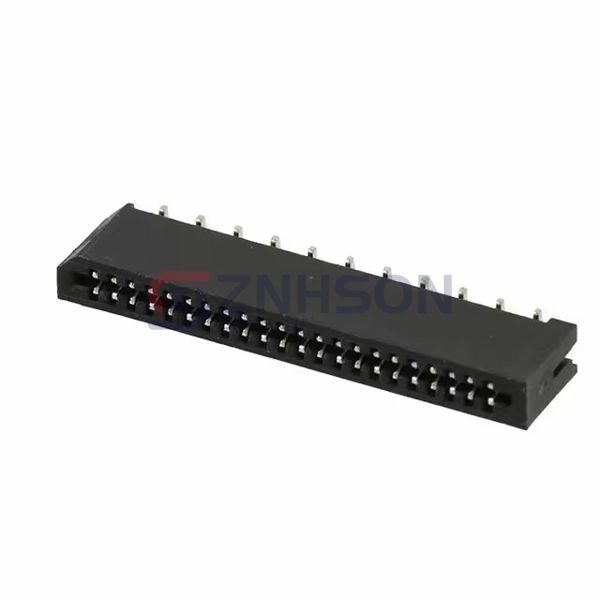

PCB-C-22-T-SMT
Adam Tech
Adam Tech
FPC/FFC CONNECTOR, LIF TYPE, 1.0
$0.60
Available to order
Reference Price (USD)
1+
$0.58000
10+
$0.54000
30+
$0.48600
60+
$0.43200
120+
$0.41400
270+
$0.37800
510+
$0.36000
1,020+
$0.29700
2,520+
$0.27000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the PCB-C-22-T-SMT FFC/FPC Connectors from Adam Tech, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The PCB-C-22-T-SMT series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Adam Tech's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for PCB-C-22-T-SMT when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 2 Sided
- Number of Positions: 22
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.220" (5.59mm)
- Locking Feature: -
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Thermoplastic
- Actuator Material: -
- Features: Low Insertion Force (LIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
